Hex Flange Head Self Tapping Screw
  • Hex Flange Head Self Tapping ScrewHex Flange Head Self Tapping Screw
  • Hex Flange Head Self Tapping ScrewHex Flange Head Self Tapping Screw
  • Hex Flange Head Self Tapping ScrewHex Flange Head Self Tapping Screw
  • Hex Flange Head Self Tapping ScrewHex Flange Head Self Tapping Screw
  • Hex Flange Head Self Tapping ScrewHex Flange Head Self Tapping Screw

Hex Flange Head Self Tapping Screw

Jinrun is a supplier of self-tapping screws. Professional production of Hex Flange Head Self Tapping Screw for more than 15 years, the production of all kinds of standard parts and non-standard self-tapping nails, free samples self-tapping screws can be provided.

Send Inquiry

Product Description

Jinrun is a manufacturer of self-tapping screws. The more common sharp-tail self-tapping nails are generally used for fastening between metal products and metal products, between wood products and wood products, or when plastic products are fastened on metal products. Since the tail of the tape-tail self-tapping screw is sharp, in order to eliminate the end of the piece will scratch other items, or the hidden exchange of accidentally injured personnel, the tail is generally buried in the fastened metal products, and the tail is not exposed.

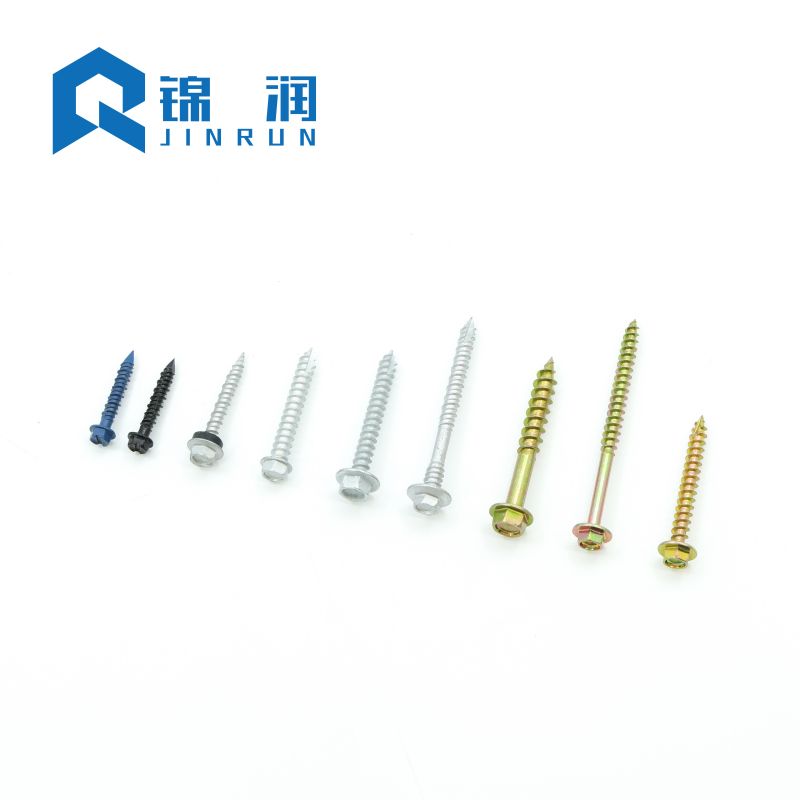

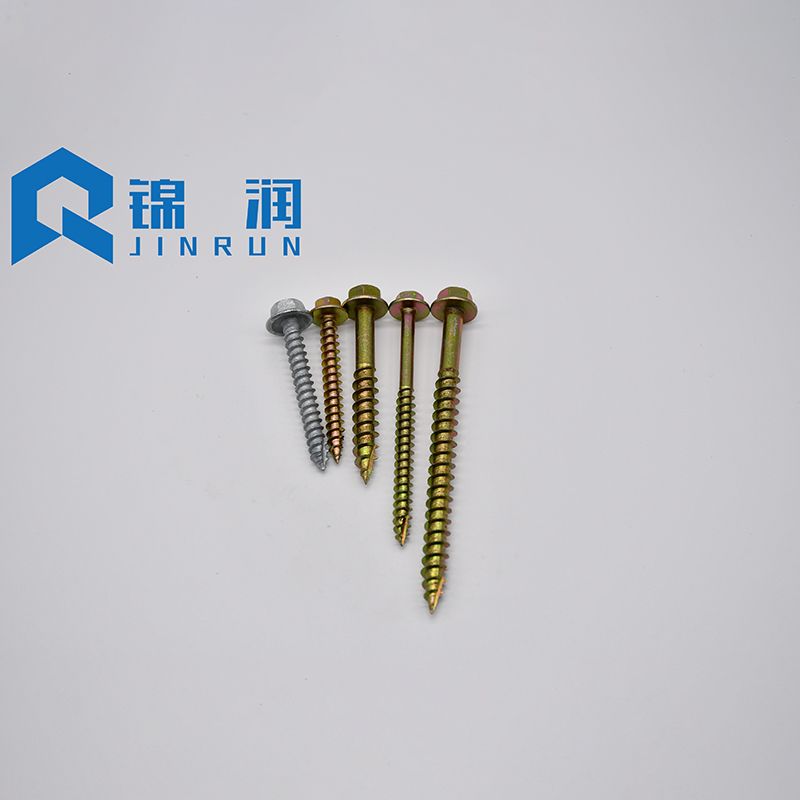

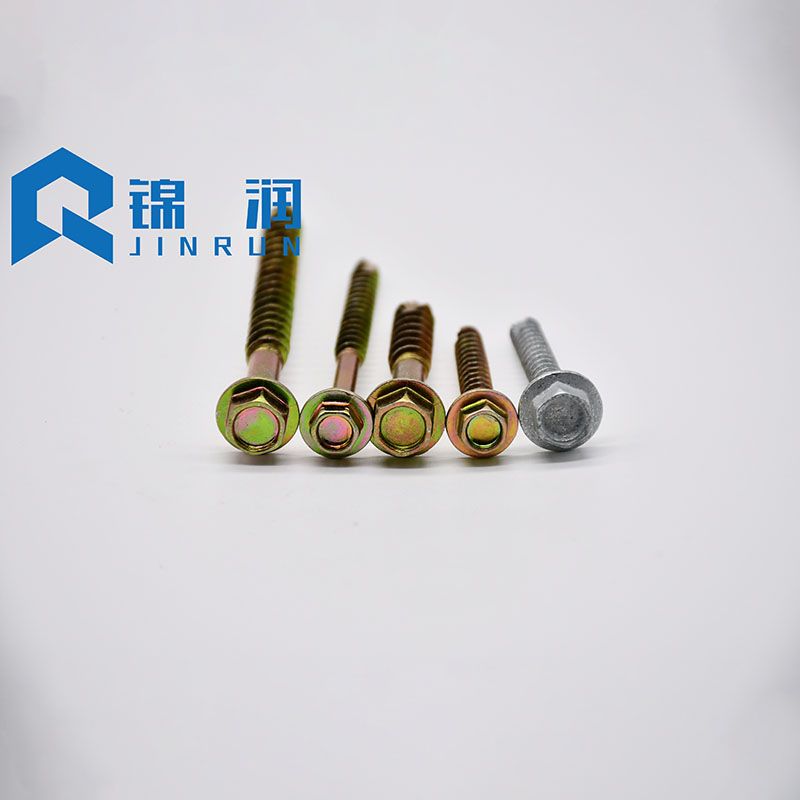

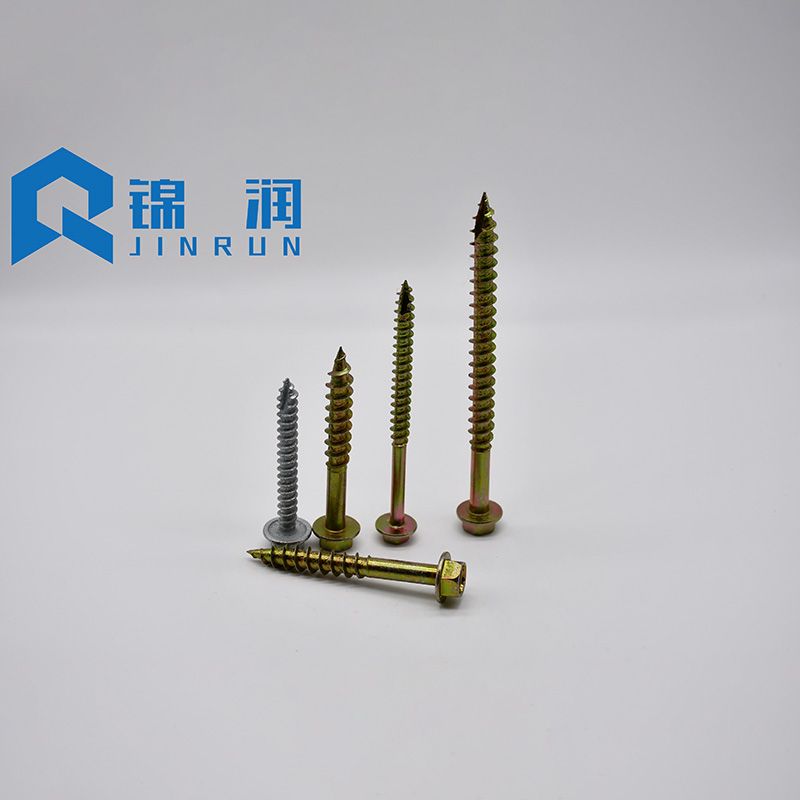

Hex flange head self-tapping screw is one of the main products of the factory, the head type refers to the head type of general hexagonal flange, and the rod thread is generally self-tapping thread. The diameter of our production can be from 3.5-6.3, the length can be from 13mm to 150mm, or the customer can provide customized product drawings or samples, and the conventional surface treatment includes electric galvanizing, phosphating, hot rust, dacromet and so on.Can be packed in bulk, small boxes or according to customer requirements.

Hex flange head self tapping screw (IFI standard Specification)

diameter Length(inch)
#6-20 1/2”-2”
#8-18 1/2”-2”
#10-16 1/2”-4”
#12-14 1/2”-6”
#14-14 1/2-6”

Hex flange head self drilling screw (DIN7504 standard Specification)

diameter Length(mm)
ST3.5 13-50
ST4.2 13-50
ST4.8 13-100
ST5.5 13-150
ST6.3 13-150

Product Details
